Zenith 3 CNC CMM

Affordable large precision measurements

The Zenith 3 CNC CMM is the result of a design evolution of the award-winning Zenith too range of machines, taking into account over 20 years of CMM design experience while retaining the hugely competitive price that its predecessor was famed for - making large scale CMM measurements simple and affordable.

Engineering Evolution

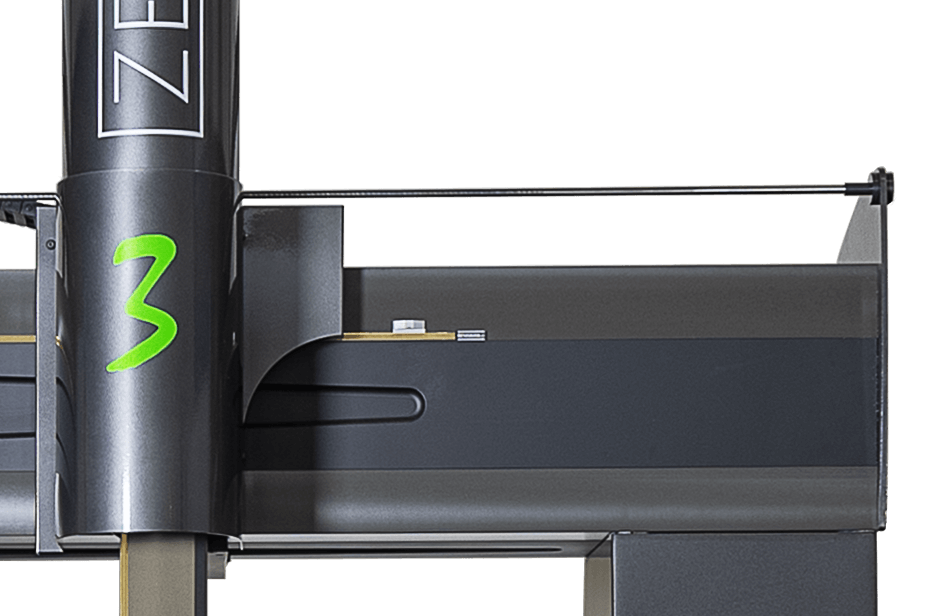

Many of the Zenith 3's design improvements revolve around the right leg of the machine, which has been modelled on the hugely successful, larger, Azimuth CMM.

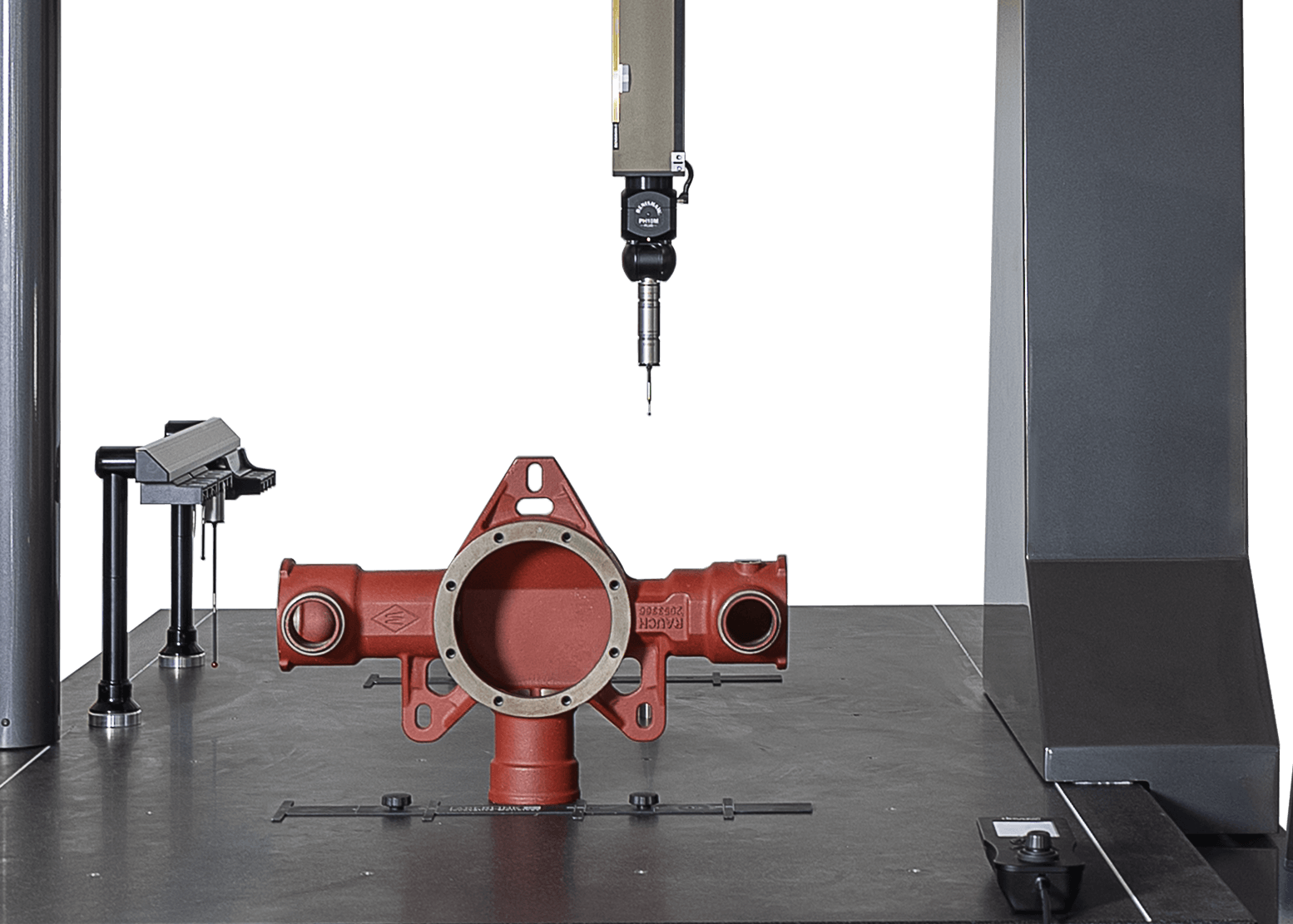

Zenith 3 CMM
Zenith 3 CMM

Superior Design

The bridge and all moving parts are light and this, combined with superior design, means that the Zenith 3 has low inertia and therefore optimal acceleration characteristics. The improved Zenith CMM is fast, minimising inspection times.

Improved Accuracy

Greater air bearing separation results in greater stiffness, and so has improved the accuracy significantly. The first term error for the Zenith 3 CMM is more than a micron better than the Zenith too.

Zenith 3 CMM
  • Aberlink's revolutionary easy-to-use measurement software
  • Shortest learning curve of any equivalent system - 1 day without prior CMM experience
  • Smallest overall footprint of any comparable size CMM
  • Choice of Y axis sizes ranging from 1000mm to 3000mm
  • Suitable for the workshop environment
  • Optimised friction free air bearings, all aluminium bridge and granite table
  • CMM Touch Screen Joystick supplied as standard
  • Free stylus change rack with every motorised probe head upgrade
Renishaw Stylus Change Rack
  • Aberlink 3D measurement software for touch probe feature inspection
  • Windows based controller, machine controller card and peripherals
  • Steel CMM workbench with fixed monitor arm or control cabinet
  • Renishaw TP8 manual indexing probe head and integrated probe
  • Aberlink probe stylus kit
  • Aberlink Ø19mm sphere CMM requalification kit
  • User training course - up to 4 trainees and software user guide
  • 12 months full parts and labour warranty
  • Free telephone helpdesk support
  • Free software upgrades - no maintenance fees or contracts
  • Common Probe Options
  • RTP20
  • PH10T (w/TP20, TP200)
  • PH20
  • PH10M (w/SP25)
  • PH6M (w/SP25)

The Zenith 3 can be supplied with any Renishaw touch trigger probe and probe head. For more help selecting the right probe, view our probe head comparison table.

Axis Travel (mm) X 1000
Y 1000, 1500, 2000, 2500, 3000
Z 600, 800
Overall Size (mm) X 1520
Y 1700, 2200, 2700, 3200, 3700
Z 2500, 2900
*Volumetric Accuracy TP20 (2.7 + 0.4L/100) µm
TP200 (2.6 + 0.4L/100) µm
SP25M (2.4 + 0.4L/100) µm
Scale Resolution 0.5µm
**Optimum Temp Range 18 - 22°C
Operational Temp Range 0 - 45°C
Table Solid granite
Table Load Capacity 1500kg as standard. Options up to 4400kg.
Max. Velocity Vector 600mm/sec
Max. Acceleration Vector 600mm/sec²
Air Consumption 50 l/min (1.8 cfm)
Required Air Pressure 5 bar (60 psi)

*Maximum Permissible Error MPEE according to 10360-2, 2009 within the thermal limits defined for optimum temperature range. **Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m
