Axiom too 30th Request

Axiom too CMM 30th Edition

CNC / Manual CMM
Axiom too 30th CMM

Limited Edition Axiom too Celebrating 30 Years of Innovative Metrology

The Limited Edition Axiom too promotion is offered across the 600, 900 and 1200 Y-axis travel machines in both manual or CNC variations, either with honeycomb granite (HG) or solid granite (SG) table. All of the limited edition CMM packages will be ready for delivery in an outstanding 4 weeks from the date of order and will most notably include the original Axiom colour scheme, software and component upgrades - completely free of charge!

Limited Edition Axiom Too CNC Package

  • 0.1µm resolution Renishaw encoders, instead of 0.5µm resolution encoders, improving the first term accuracy to 2.1µm from 2.4µm, free-of-cost.

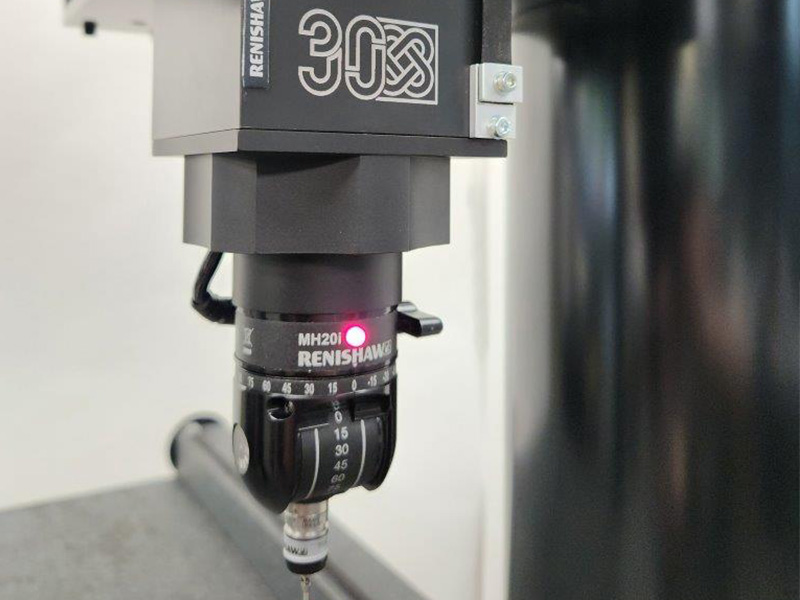

  • MH20i manual indexing probe head instead of the TP8 free-of-cost. Or £1,000.00 off the price of an upgrade to a more sophisticated probing system.
  • Programming from CAD software free-of-cost.
  • CAD Comparison software free-of-cost.
  • Dual Monitor option free-of-cost.
  • Automatic ambient air temperature compensation option free-of-cost.

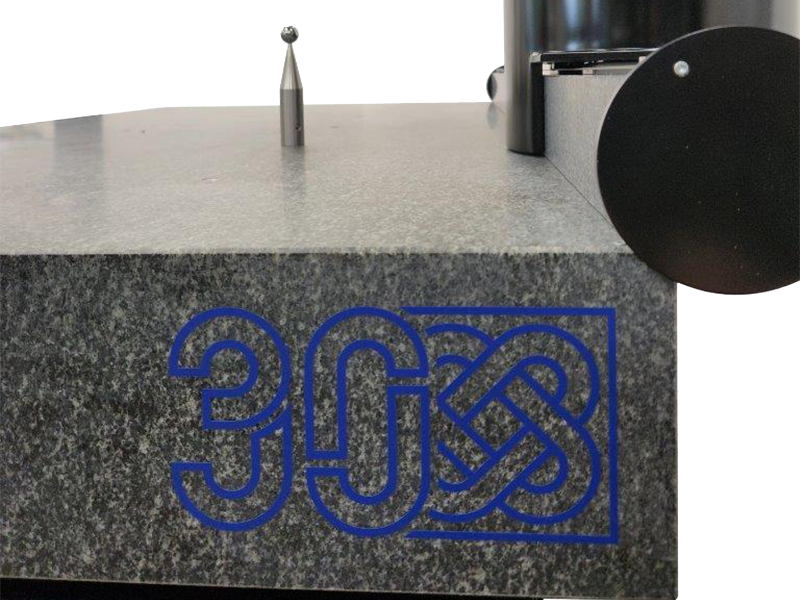

  • Distinctive black coloured covers, in memory of the original Axiom CMM, with 30th anniversary decals.
  • Delivery lead time 4 weeks from the date of order.

Not only an accuracy upgrade, but over £6,500 worth of optional extras, completely free of charge!

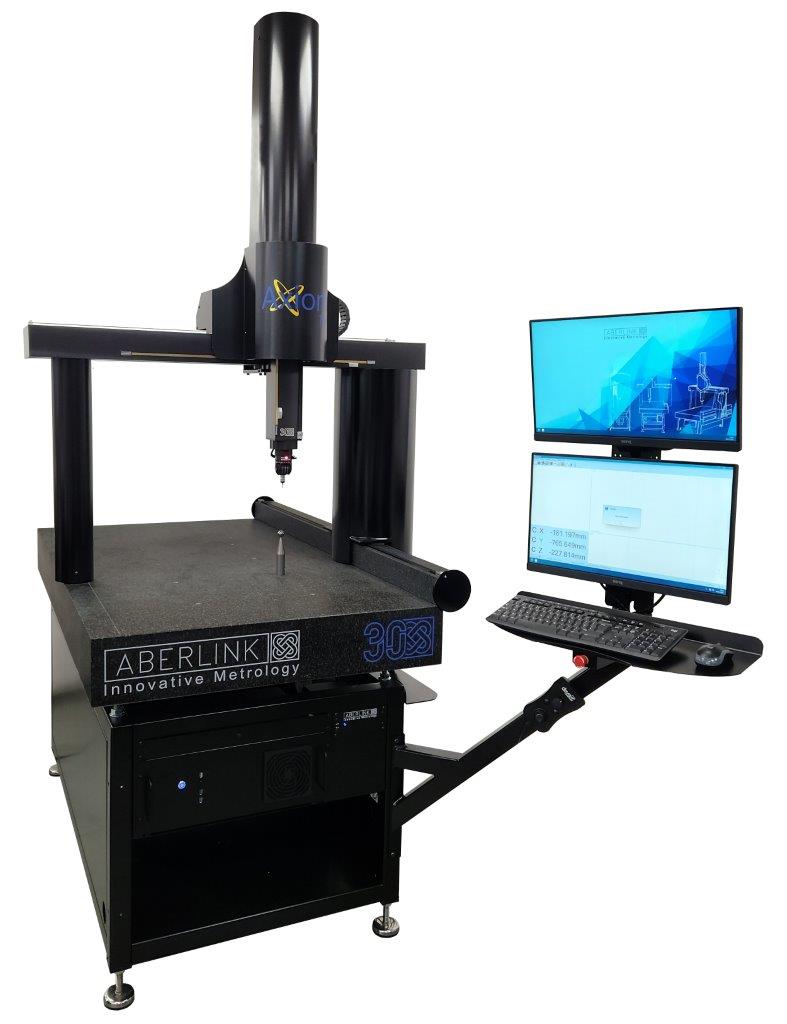

Axiom too CNC CMM
Axiom too CNC CMM

Limited Edition Axiom too Manual Package

  • MH20i manual indexing probe head instead of the TP8 free-of-cost.
  • CAD Comparison software free-of-cost.
  • Dual Monitor option free-of-cost.
  • Automatic ambient air temperature compensation option free-of-cost.
  • Distinctive black coloured covers, in memory of the original Axiom CMM, with 30th anniversary decals.
  • Delivery lead time 4 weeks from the date of order.

The perfect offer for customers looking for a manually driven CMM with an indexable probe, with over £4,600 worth of optional extras, completely free of charge!

  • Aberlink's revolutionary easy-to-use measurement software
  • Shortest learning curve of any equivalent system - 1 day without prior CMM experience
  • Smallest overall footprint of any comparable size CMM
  • Choice of Y axis sizes ranging from 600mm to 1200mm
  • Suitable for the workshop environment
  • Protection from environmental vibrations as standard
  • Optimised friction free air bearings, all aluminium bridge and granite table
  • Free stylus change rack with every motorised probe head upgrade
Renishaw Stylus Change Rack
  • Aberlink 3D measurement software for touch probe feature inspection
  • Windows based controller, machine controller card and peripherals
  • Steel CMM workbench with fixed keyboard shelf or monitor arm
  • Free Dual Monitor option
  • Free Automatic ambient air temperature compensation option
  • Touch sensitive 3D joystick and variable CMM speed control
  • Free Renishaw MH20i manual indexing probe head and integrated probe upgrade
  • Free Aberlink CAD Comparison software module
  • Aberlink probe stylus kit
  • Aberlink Ø19mm sphere CMM requalification kit
  • User training course - up to 4 trainees and software user guide
  • 12 months full parts and labour warranty
  • Free telephone helpdesk support
  • Free software upgrades - no maintenance fees or contracts
  • Common Probe Options
  • MH20i
  • RTP20
  • PH10T (w/TP20, TP200)
  • PH10M (w/SP25)
  • PH6M (w/SP25)

The Axiom too can be supplied with any Renishaw touch trigger probe and probe head. For more help selecting the right probe, view our probe head comparison table.

Axis Travel (mm) X 640
Y 600, 900, 1200
Z 500
Overall Size (mm) X 1040
Y 900, 1200, 1500
Z 2320
Motion CNC
Structure Bridge
Suitable for Inspection Room / Production Environment
Drive Type Belt
*Volumetric Accuracy TP20
(2.1µm + L/250mm)
TP200
(2.0µm + L/250mm)
SP25M
(1.8µm + L/250mm)
Scale Resolution 0.1µm
**Optimum Temp Range 18 - 22°C
Operational Temp Range 5 - 45°C
Table Construction Honeycomb aluminium & granite or solid granite
Table Load Capacity 300kg (Honeycomb) or 500kg (Solid)
Max. Velocity Vector 600mm/sec
Max. Acceleration Vector 600mm/sec²
Air Required Yes
Air Consumption 100 l/min (3.53 cfm)
Required Air Pressure 7 bar (100 psi)
Aberlink Camera Support Yes

*Maximum Permissible Error MPEE within the thermal limits defined for optimum temperature range. **Installation environmental thermal limits: Rate of change <1°C/hr and <2°C/24hr. Temperature gradient <1°C/m
